AD8362ARUZ-REEL7

The AD8362ARUZ-REEL7 is a precision, true RMS-to-DC converter from Analog Devices, designed for measuring the RMS value of complex waveforms, including AC, RF, and modulated signals. It provides accurate root mean square (RMS) measurements across a wide frequency range, making it ideal for use in high-frequency signal processing applications.

Key Features:

• True RMS Detection: Measures the true RMS value of input signals, providing accurate readings regardless of waveform complexity, including sine waves, square waves, and noise-like signals.
• Wide Frequency Range: Operates over a broad frequency range from low frequencies up to 2.7 GHz, supporting both RF and baseband applications.
• High Dynamic Range: Provides a wide dynamic range of up to 60 dB, making it suitable for measuring both small and large signal amplitudes.
• Linear-in-dB Output: Offers a linear-in-dB output, which simplifies the calculation of the RMS level in decibels, making it easier to use in signal monitoring and control systems.
• Fast Response Time: Features a fast settling time for quick and precise measurements, suitable for dynamic signal environments.
• Power Supply: Operates with a single supply voltage ranging from 5V to 5.5V, making it compatible with most system designs.
• Temperature Stability: Designed for high accuracy across a wide temperature range, ensuring reliable performance in various operating conditions.

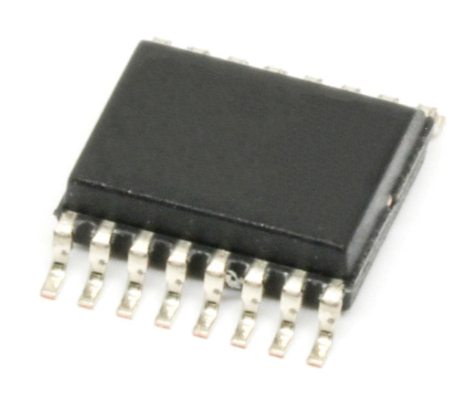

• Compact Package: Available in a 16-lead TSSOP (Thin Shrink Small Outline Package), providing a compact solution for high-density designs.

Applications:

• RF Power Measurement: Ideal for RF signal monitoring, power amplifiers, and transceiver signal chains.
• Instrumentation: Suitable for precision measurement systems in test and measurement equipment.
• Wireless Communication: Used in base stations, repeaters, and other wireless infrastructure to monitor signal strength and quality.
• Industrial and Medical Equipment: Applied in systems requiring accurate power or signal level measurement.

The AD8362ARUZ-REEL7 provides high accuracy and versatility for RMS signal measurement across a wide range of frequencies and signal types, making it an excellent choice for RF power monitoring, instrumentation, and other signal processing applications.
