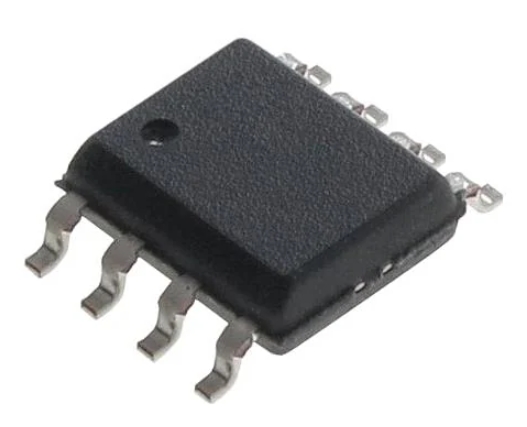

IR2101STRPBF

The IR2101STRPBF is a high-voltage, high-speed dual half-bridge driver designed for driving MOSFETs and IGBTs in power switching applications. It is particularly useful in motor control and power inverter circuits. Key features include:

1. Type:
   • Dual half-bridge driver for controlling high-side and low-side switches.
2. Voltage Rating:
   • 600V maximum gate-to-source voltage capability, suitable for high-voltage applications.
3. Output Drive Capability:
   • Provides high peak source and sink current capabilities, up to 2.0A (source) and 2.0A (sink), ensuring efficient drive for power switches.
4. High-Speed Switching:
   • Designed for fast switching with a propagation delay of <600 ns, enabling high-frequency operation.
5. Bootstrap Operation:
   • Includes a bootstrap diode and capacitor to allow efficient high-side drive operation with a single supply voltage.
6. Dead-Time Control:
   • Integrated dead-time control to prevent shoot-through current between high-side and low-side switches, improving reliability and efficiency.
7. Protection Features:
   • Features under-voltage lockout (UVLO) and over-current protection to enhance circuit safety and reliability.
8. Package:
   • Available in an SO-16 package, providing compact size and ease of integration into various circuit designs.
9. Applications:
   • Suitable for use in motor drives, power inverters, and other high-voltage switching applications where reliable and efficient gate driving is crucial.

The IR2101STRPBF delivers robust performance with high-voltage capability, efficient drive currents, and fast switching speeds, making it a versatile choice for power electronics applications.
