MC56F8367VPYE

The MC56F8367VPYE is a digital signal controller (DSC) from NXP Semiconductors, designed for a wide range of embedded applications, particularly in the fields of motor control and digital signal processing. Here are its key features and characteristics:

1. Core Architecture: The MC56F8367 features a 16-bit DSP core, optimized for real-time performance, enabling efficient execution of complex algorithms for signal processing.
2. Operating Frequency: It can operate at a maximum clock frequency of up to 80 MHz, allowing for high-speed processing capabilities.
3. Memory:
   • Flash Memory: It includes up to 128 KB of flash memory for program storage, facilitating the implementation of complex control algorithms.
   • RAM: It has up to 8 KB of SRAM for data storage, providing fast access to data during processing.
4. Peripherals: The device comes with a variety of integrated peripherals, including:
   • ADC: Multiple 12-bit Analog-to-Digital Converters (ADCs) for precise analog signal measurement.
   • PWM: Enhanced Pulse Width Modulation (PWM) capabilities for motor control applications.
   • Timers: Multiple timers for precise timing and control operations.
   • Communication Interfaces: Includes I²C, SPI, and UART interfaces for flexible communication with other devices.
5. Low Power Consumption: Designed for low power operation, making it suitable for battery-powered and energy-efficient applications.
6. Applications: Ideal for motor control, power management, industrial automation, consumer electronics, and other applications that require efficient digital signal processing and control.

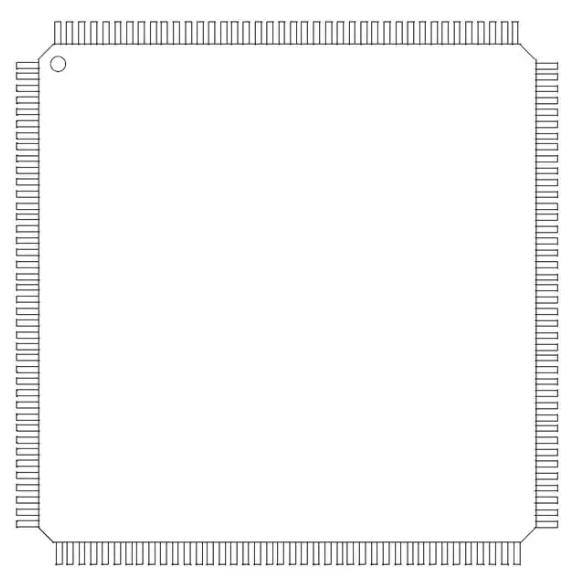

7. Package: The MC56F8367 is typically offered in a compact LQFP (Low-Profile Quad Flat Package) to facilitate integration into space-constrained designs.

The MC56F8367VPYE is a versatile and powerful digital signal controller, providing the performance and features necessary for advanced signal processing applications in a variety of industries.
