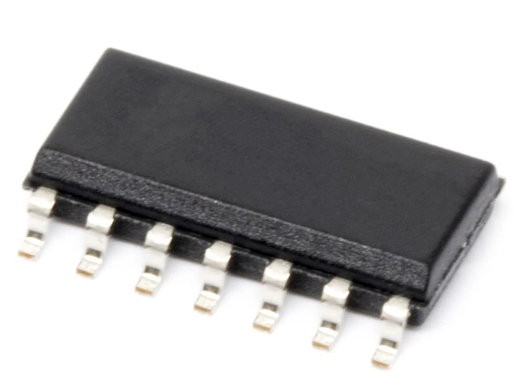

MC74HC14ADR2G

Manufacturer Part Number: MC74HC14ADR2G Manufacturer / Brand: ON
Part of Description: Inverters 2-6V Hex CMOS Schmitt Trigger Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Ship From: HK/Shen Zhen Shipment Way: DHL/Fedex/TNT/UPS
Datasheets:
MC74HC14ADR2G.PDF

Product parameters

ManufacturerON
RoHSDetails
Mounting StyleSMD/SMT
Package / CaseTSSOP-20
High Level Output Current– 24 mA
Low Level Output Current24 mA
Quiescent Current4 uA
PackagingReel
Minimum Operating Temperature– 40 C
Maximum Operating Temperature+ 85 C
Factory Pack Quantity2000
SubcategoryLogic ICs
Width4.5 mm
Unit Weight0.011923 oz
