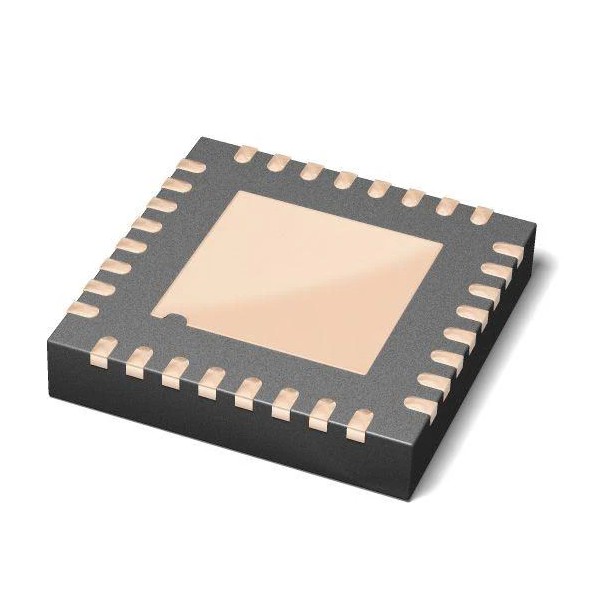

MFRC63003HNE

What is MFRC63003HNE?

The internal transmitter of MFRC63003HNE can drive the designed reader antenna to communicate with cards based on ISO/IEC 14443A and MIFARE Cassic IC, and the repeater does not require

additional active circuits. The digital module manages complete ISO/IEC 14443A framing and error detection functions (parity and CRC).

Supports 1K of MIFARE Classic memory, 4K of MIFARE Classic memory, MIFARE Ultralight, MIFARE Ultralight C, MIFARE Plus, and MIFARE DESFire products. MFRC63003HN supports higher

transmission speeds of up to 848 kbit/s in both directions for the MIFARE product series.

MFRC63003HNE Applications：

High performance multi protocol NFC front-end with a transmission speed of up to 848 kbit/s

Supports ISO/IEC 14443 A, MIFARE Classic, and NTAG

Support hardware encryption for MIFARE Classic products in read/write mode

Allow reading of MIFARE Classic cards based on MIFARE Ultralight with 1 kB of memory,

MIFARE Classic, MIFARE DESFire EV1, MIFARE DESFire EV2 with 4 kB of memory, and

MIFARE Plus IC

Low power card detection

Use the minimum number of external components for antenna connections

Supported host interfaces:

SPI up to 10 Mbit/s

First generation MFRC63003HNE

The 2C bus interface can reach up to 400 kBd in fast mode and up to 1000 kBd in fast mode

RS232 serial UART up to 1228.8 kBd, voltage level depends on pin voltage

Supply MFRC63003HN

Independent I2C bus interface for connecting Security Access Module (SAM)

The FIFO buffer size is 512 bytes, which can achieve the highest transaction performance

Flexible and efficient power-saving modes, including hard power outage, standby, and

Low power card detection MFRC63003HNE

Save costs by integrating PLL to obtain system clock from 27.12 MHz RF quartz crystal

3 V to 5.5 V power supply (MFRC63002)

2.5 V to 5.5 V power supply (MFRC63003)

Up to 8 idle programmable input/output pins
