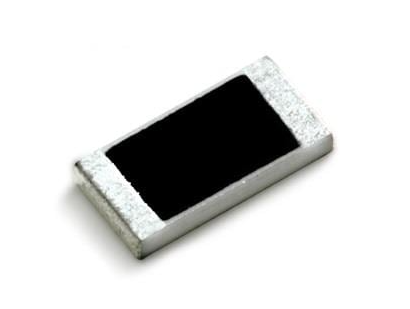

RC0603JR-07100RL

The RC0603JR-07100RL is a precision surface-mount resistor manufactured by Yageo, designed for applications requiring accurate and stable resistance values. It is part of the RC series, known for its reliability and compact size.

Key Features:

• Resistance Value: 100 kΩ (100,000 ohms), providing precise resistance for accurate circuit performance.
• Tolerance: ±5%, indicating that the resistor’s actual value will be within 5% of the specified resistance, suitable for moderate precision requirements.
• Package Size: 0603 (1.6 mm x 0.8 mm), a small surface-mount package ideal for high-density PCB layouts and space-constrained designs.
• Power Rating: 1/10W (0.1W), suitable for low-power applications where minimal heat dissipation is needed.
• Temperature Coefficient: Typically around ±100 ppm/°C, ensuring minimal resistance variation with temperature changes.
• High Reliability: Designed for stable performance in various electronic circuits, providing long-term reliability and consistency.

Typical Applications:

• Consumer Electronics: Used in devices such as smartphones, tablets, and home appliances where precise resistance values are critical.
• Automotive Electronics: Applied in automotive systems for accurate measurement and control in vehicle components.
• Industrial Equipment: Utilized in industrial control systems and machinery for reliable performance in harsh environments.
• Communication Devices: Employed in communication systems and equipment for accurate signal conditioning and impedance matching.

The RC0603JR-07100RL is valued for its precise resistance value, compact size, and dependable performance, making it an excellent choice for various surface-mount applications in consumer, automotive, industrial, and communication electronics.
