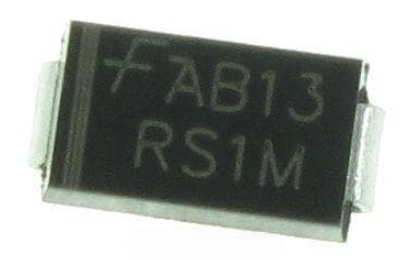

RS1M

The RS1M is a fast recovery rectifier diode designed for use in general-purpose rectification and high-speed switching applications. Here are its key features:

1. Type:
   • Fast Recovery Rectifier Diode.
2. Maximum Reverse Voltage:
   • Rated for a 1000V peak reverse voltage, providing high voltage tolerance for various applications.
3. Forward Current:
   • Capable of handling up to 1A of continuous forward current, suitable for low- to medium-power circuits.
4. Reverse Recovery Time:
   • Fast recovery time of 500ns, ensuring quick switching in rectification and signal processing circuits.
5. Forward Voltage:
   • Typical forward voltage drop of 1.1V at 1A, offering efficient conduction during forward bias operation.
6. Package:
   • Available in the DO-214AC (SMA) surface-mount package, compact and designed for space-constrained applications.
7. Surge Current:
   • Capable of handling a surge current of 30A, providing robustness against short-duration high current pulses.
8. Applications:
   • Used in power supplies, inverters, converters, and various switching applications where fast recovery and high voltage tolerance are required.

The RS1M fast recovery diode is a reliable solution for rectification and switching applications, offering high voltage capacity and fast recovery for efficient circuit operation.
